2023 - Jenbacher Gas Generators Containerised Package 25.2 MW

25.2 MW Gas-Powered Power Plant Specification

Unit Specifications

Unit No. 1

- Model: Jenbacher 620

- Year: 2008 (Remanufactured in 2023)

- Rated Output Power: 3,119 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 2

- Model: Jenbacher 620

- Year: 2010 (Remanufactured in 2023)

- Rated Output Power: 3,349 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 3

- Model: Jenbacher 620

- Year: 2009 (Remanufactured in 2023)

- Rated Output Power: 2,807 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 4

- Model: Jenbacher 620

- Year: 2009 (Remanufactured in 2023)

- Rated Output Power: 2,807 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 5

- Model: Jenbacher 620

- Year: 2008 (Remanufactured in 2023)

- Rated Output Power: 2,807 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 6

- Model: Jenbacher 620

- Year: 2009 (Remanufactured in 2023)

- Rated Output Power: 2,807 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 7

- Model: Jenbacher 620

- Year: 2008 (Remanufactured in 2023)

- Rated Output Power: 2,807 kW

- Voltage: 11,000 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 8

- Model: Jenbacher 616

- Year: 2008 (Remanufactured in 2023)

- Rated Output Power: 2,495 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Unit No. 9

- Model: Jenbacher 616

- Year: 2007 (Remanufactured in 2023)

- Rated Output Power: 2,246 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Speed: 1,500 RPM

Additional Features

All units are housed in high-specification containers, featuring:

- Brand New Units: All units are newly remanufactured.

- High-Quality Containers: Units are enclosed in premium containers with diamond deck flooring.

Container Design and Features:

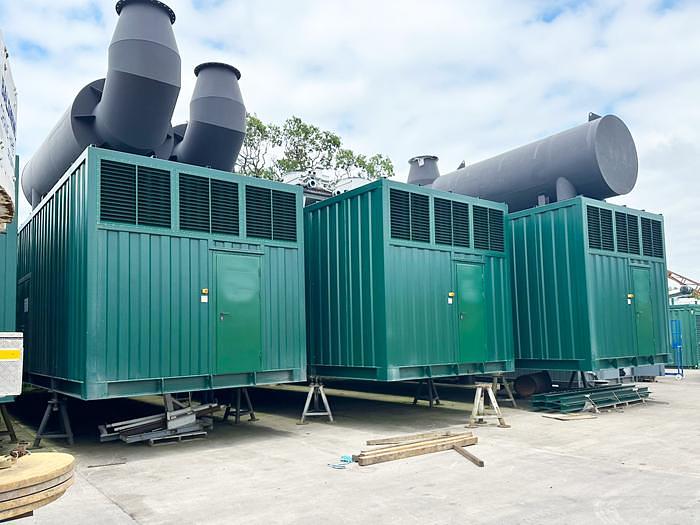

The containers, as shown in the attached image, are robustly designed with the following key characteristics:

- Exterior Construction: High-durability green steel casing.

- Ventilation: Large, louvered vents on the upper sections for optimal airflow.

- Access Doors: Secure entry doors with labeled panels for easy identification and access.

- Exhaust Stacks: Prominently mounted large black exhaust silencers for noise reduction and efficient emission handling.

- Foundation: Elevated on sturdy metal supports, ensuring stability and ease of maintenance.

Comprehensive Power Plant Package:

- Table Cooler Radiators: Ensuring efficient cooling.

- Exhaust Silencers: Reducing noise emissions.

- Heat Exchangers: Integrated within the container for optimal thermal management.

- Separate Control Panel Rooms: Dedicated spaces for operational control and monitoring.

- Gas Lines: Complete gas line setup included, facilitating seamless gas supply to the units.

- Lubrication Oil Tanks: Provided to ensure smooth and efficient operation.

- Modern Design: Contemporary design with functionality and ease of maintenance in mind.

The 25.2 MW Gas-Powered Power Plant is designed for quick and efficient installation. Each unit is housed in robust, high-quality containers with all necessary components pre-installed, including table cooler radiators, exhaust silencers, heat exchangers, and complete gas lines. The elevated container design ensures ease of access and stability, while the integrated control panel rooms and lubrication oil tanks simplify setup and operation. With these features, the power plant can be rapidly deployed and commissioned, minimizing downtime and accelerating power delivery.

Please see attached the pictures for the units available for sale.

Kindly advise your interest if you would like to get further details feel free to contact us back.
