1996 France Transfo TRIHAL 2.5 to 3.5 MVA Cast Resin Transformer 11 to 15 kV / 433 V

Sold

1996 France Transfo TRIHAL 2.5 to 3.5 MVA Cast Resin Transformer 11 to 15 kV / 433 V

Description

France Transfo TRIHAL 2.5 / 3.5 MVA Cast Resin Transformer 11 to 15 kV / 433 V

No of QTY available: 5


For Sale – High-Capacity France Transfo TRIHAL Dry-Type Transformer

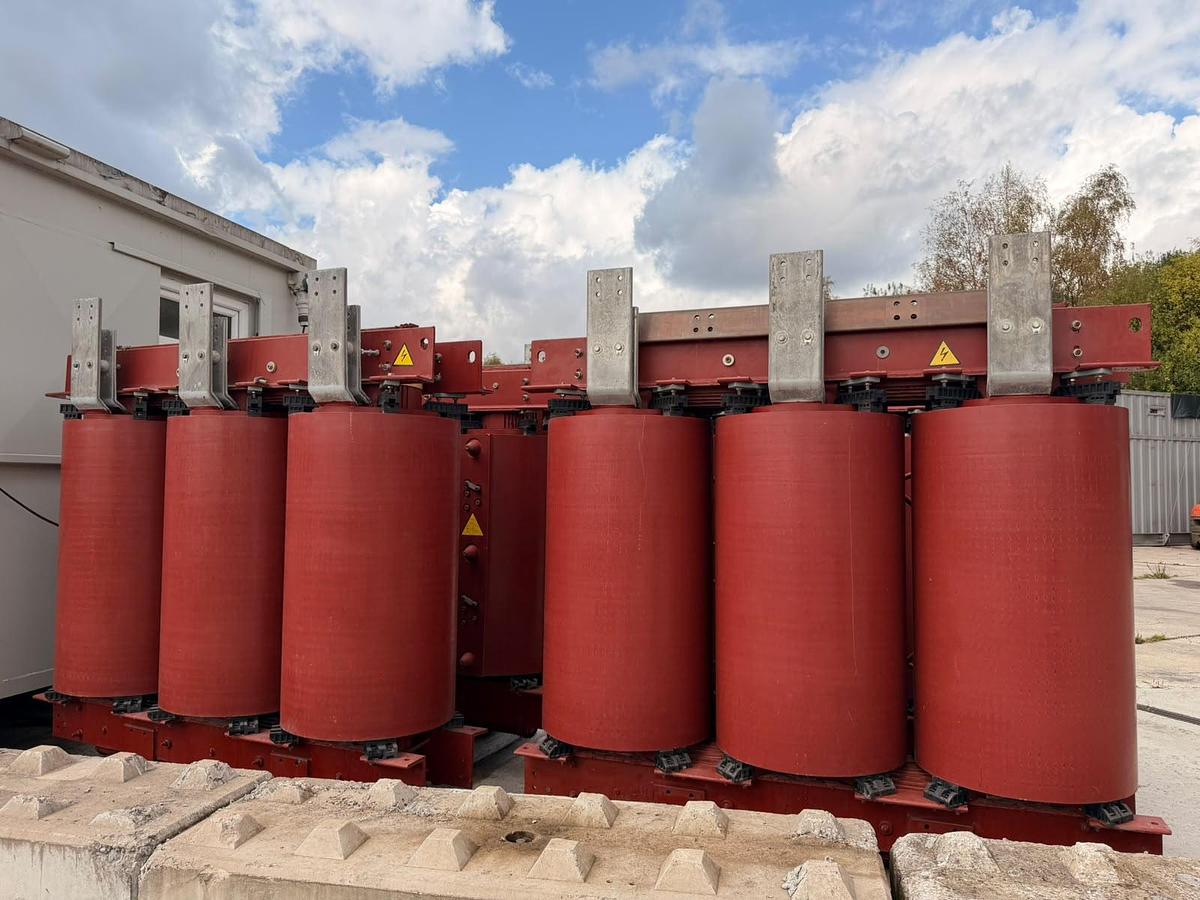

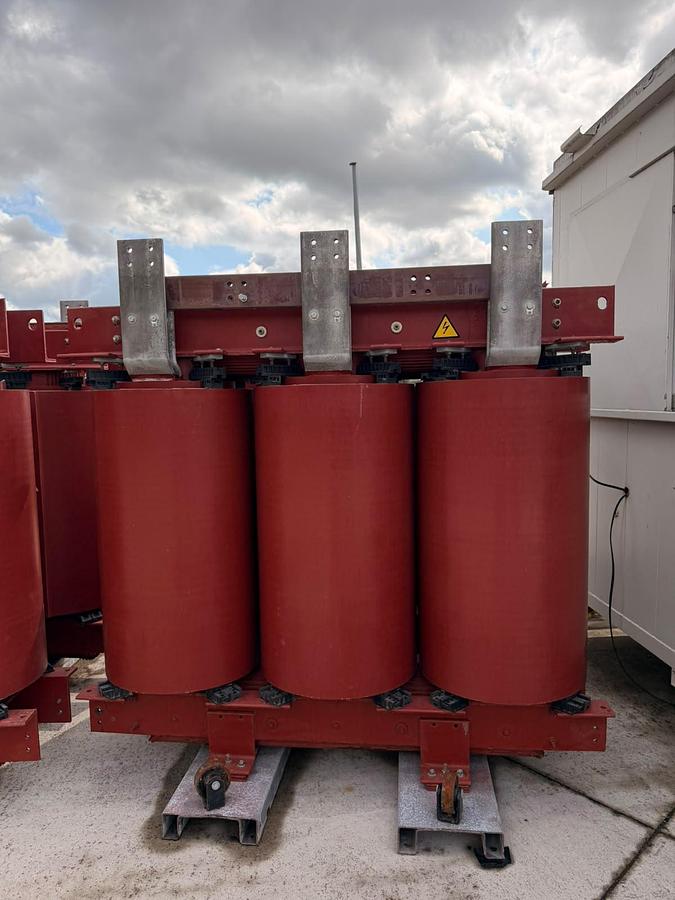

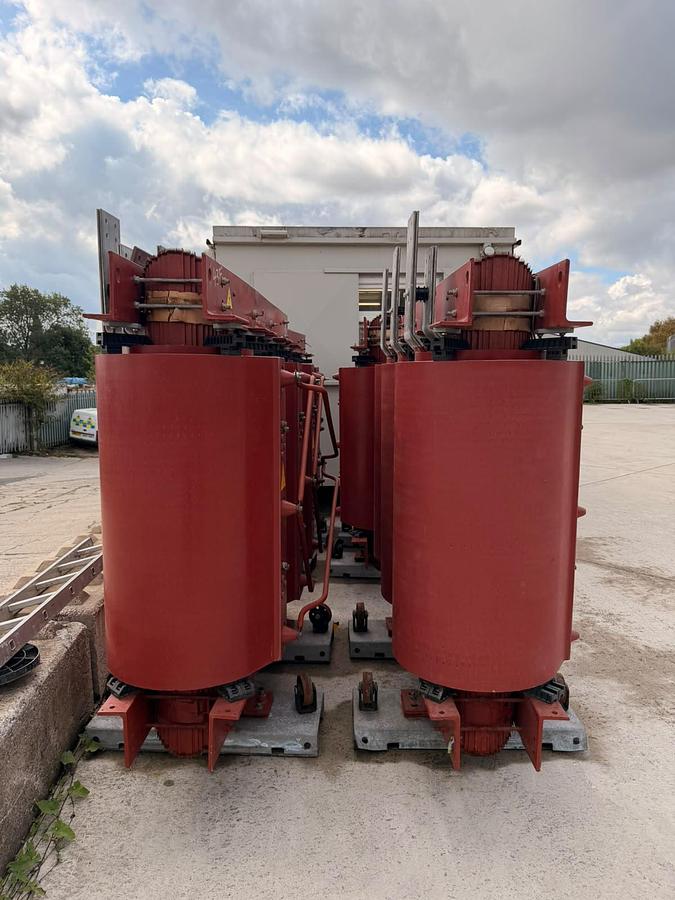

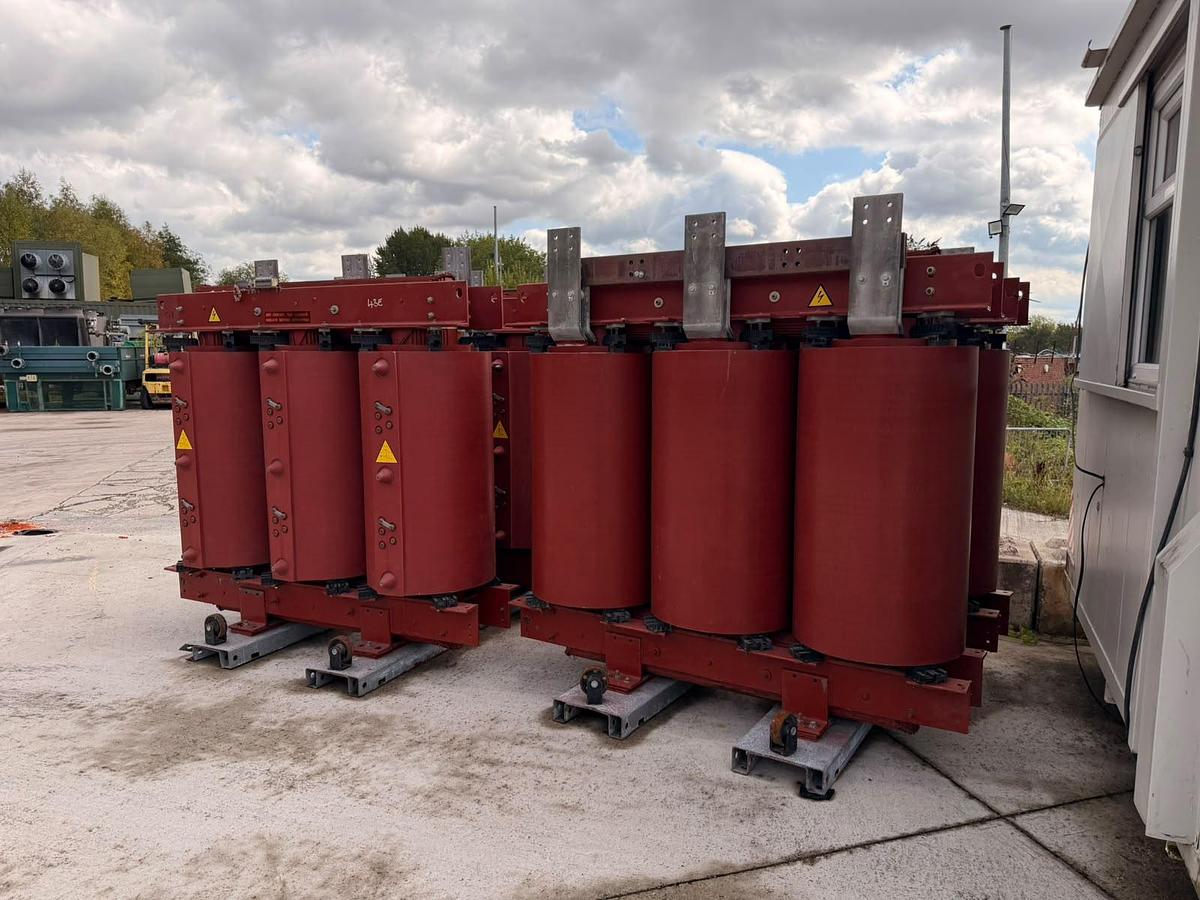

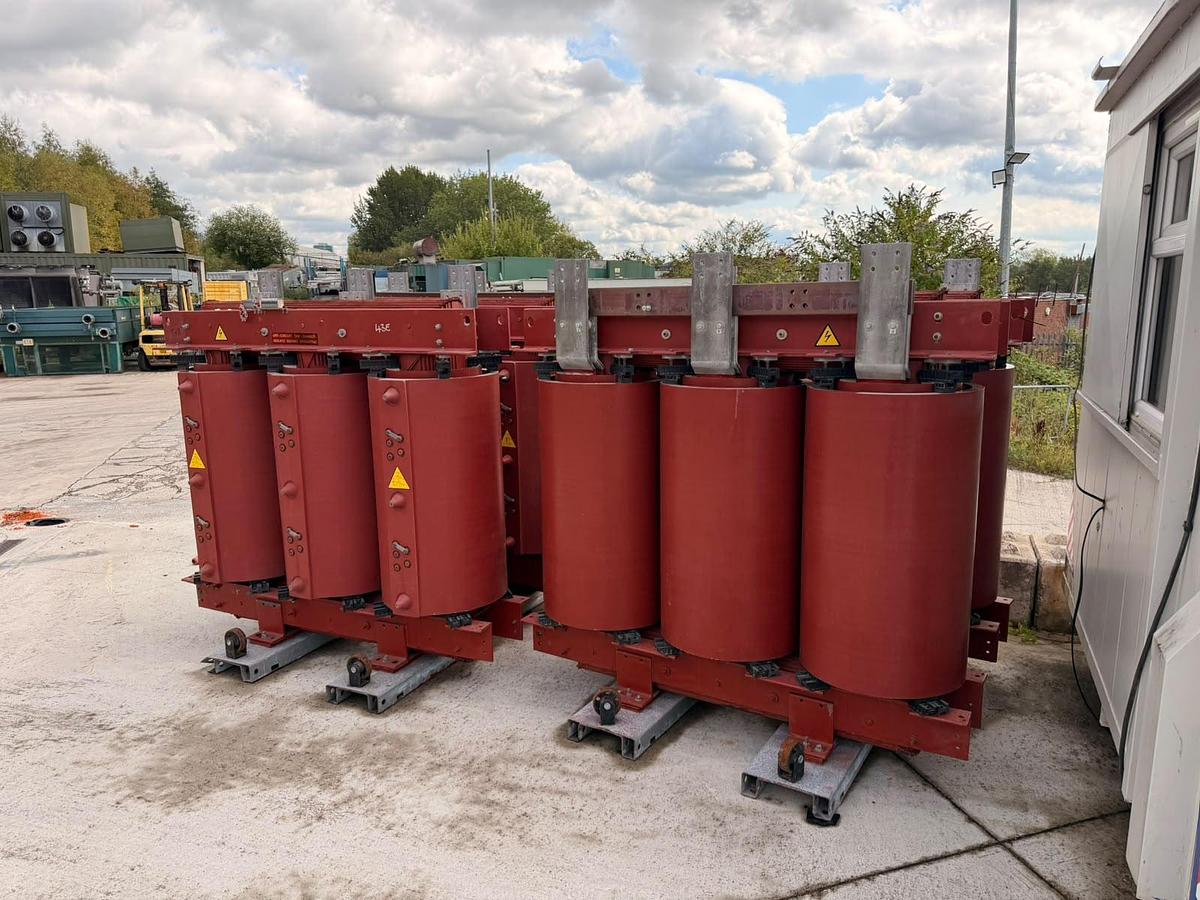

Available is a France Transfo TRIHAL cast-resin, three-phase dry-type transformer, manufactured by Groupe Merlin Gerin, Ennery, France. This is a substantial industrial transformer with a 2,500 kVA natural-air rating and 3,500 kVA forced-air rating, making it suitable for a wide range of industrial, commercial and infrastructure applications.


Electrical Specifications

  • Manufacturer: France Transfo / TRIHAL
  • Type: Cast Resin Dry-Type Transformer
  • Phases: 3 Phase
  • Frequency: 50 Hz
  • Rated Power: 2,500 / 3,500 kVA
  • HV: 15 kV nominal
  • LV: 433 V
  • HV Current: Approx. 96.2 A
  • LV Current: 3,333 / 4,668 A
  • Impedance: 6.04%
  • Vector Group: Dyn11
  • Cooling: AN / AF (Air Natural / Air Forced)
  • Manufactured: 1996
  • Serial Number: 6209803


HV Tap Settings

The transformer is equipped with multiple HV tapping positions:

  • 1–2: 15,500 V
  • 2–3: 11,275 V
  • 2–5: 11,000 V
  • 3–4: 10,725 V
  • 4–5: 10,450 V


Insulation & Environmental Classification

  • HV insulation level: 28 / 75 kV
  • LV insulation level: 10 kV
  • Fire behaviour: F1
  • Climatic class: C2
  • Environmental class: E2

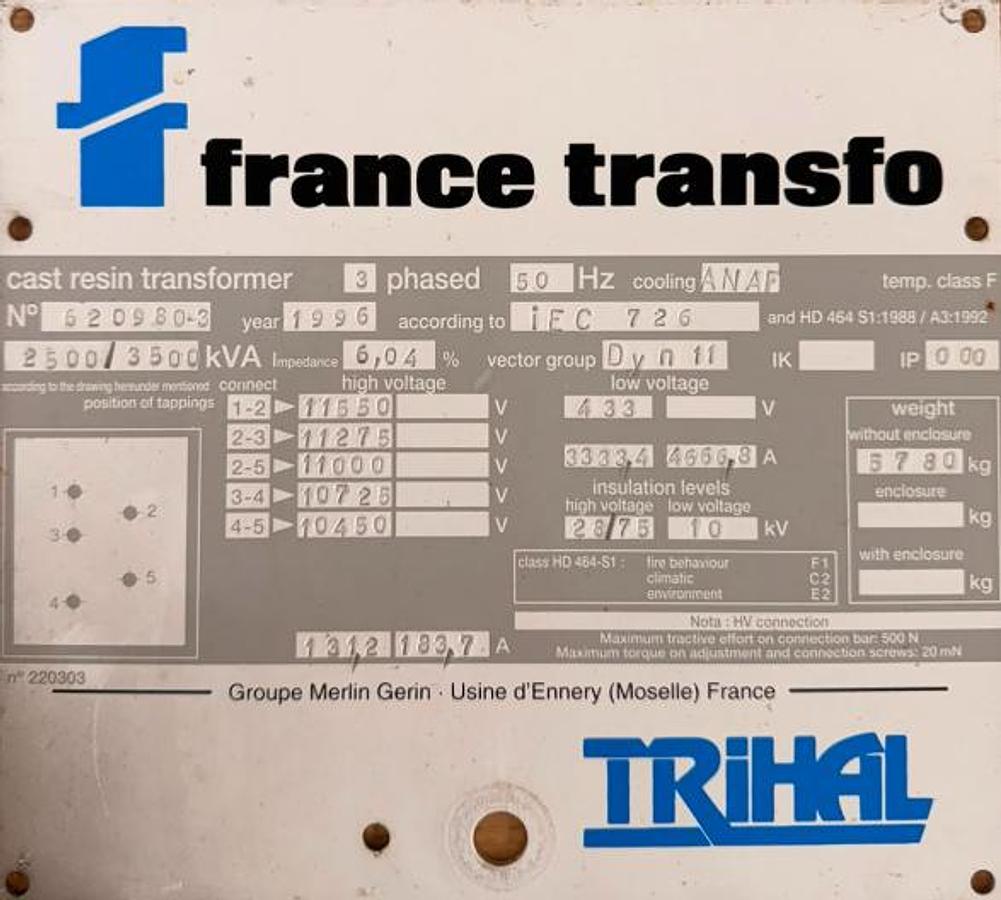

  • Manufactured in accordance with IEC 726 and the standards indicated on the original rating plate.


Physical Information

  • Weight without enclosure: Approximately 5,780 kg
  • Robust cast-resin construction
  • Suitable for indoor applications where a dry-type transformer is preferred over an oil-filled unit.
  • Located in Manchester, United Kingdom



The 2.5 / 3.5 MVA dual rating provides excellent flexibility: approximately 2.5 MVA under natural-air cooling (AN) and up to 3.5 MVA with forced-air cooling (AF).

A proven France Transfo TRIHAL transformer from Groupe Merlin Gerin, offering a high-capacity dry-type solution with Dyn11 configuration and 433 V low-voltage output.


Contact us today to get a quote.

Specifications

ManufacturerFrance Transfo TRIHAL
Model2.5 to 3.5 MVA Cast Resin Transformer 11 to 15 kV / 433 V
Year1996
ConditionUsed
Stock NumberUKPG-998399782
* ManufacturerFrance Transfo / TRIHAL
* TypeCast Resin Dry-Type Transformer
* Phases3 Phase
* Frequency50 Hz
* Rated Power2,500 / 3,500 kVA
* HV15 kV nominal
* LV433 V
* HV CurrentApprox. 96.2 A
* LV Current3,333 / 4,668 A
* Impedance6.04%
* Vector GroupDyn11
* Manufactured1996
* Fire behaviourF1
* HV insulation level28 / 75 kV
* Environmental classE2
* LV insulation level10 kV
* Climatic classC2
* Weight without enclosureApproximately 5,780 kg
