2006 Jenbacher JMS 420GS-N 1.415 MW Natural Gas Generator – 400V, 50Hz, 1500 RPM

USED JENBACHER JMS 420GS-N NATURAL GAS GENERATOR SET – 1,415 kW / 1,935 kVA – 400V / 50Hz

We are pleased to offer 1 x Jenbacher JMS 420GS-N natural gas generator set, manufactured in 2006 and presented in excellent condition with low running hours.

This proven Jenbacher gas engine generator package is suitable for a wide range of industrial and commercial power-generation applications, including CHP (Combined Heat and Power), distributed generation, industrial self-generation, standby power, replacement projects and capacity expansion.

The package combines a Jenbacher JMS 420GS-N natural gas engine with a Newage / AVK Deutschland GmbH PE734F2 alternator, delivering approximately 1.415 MW engine output and up to 1,935 kVA continuous alternator capacity.

The 400/231 V, 50 Hz, 1,500 RPM configuration makes this generator particularly suitable for industrial and commercial installations requiring low-voltage, three-phase power generation.

KEY FEATURES

• Manufacturer: Jenbacher
• Model: JMS 420GS-N
• Year: 2006
• Fuel: Natural Gas
• Engine Rated Power: 1,415 kW / 1.415 MW
• Alternator Rating: 1,935 kVA Continuous
• Alternator Power: 1,548 kW
• Voltage: 400 / 231 V
• Frequency: 50 Hz
• Speed: 1,500 RPM
• Phase: 3 Phase
• Power Factor: 0.80
• Rated Current: 2,042 A
• Performance Class: G2
• Alternator: Newage / AVK Deutschland GmbH
• Alternator Frame: PE734F2
• AVR: MX321
• Enclosure: IP23
• Stator Connection: Star
• Maximum Site Altitude: 500 m
• Maximum Ambient Temperature: 30°C
• Alternator Ambient Rating: 40°C
•


ENGINE SPECIFICATION

Engine Manufacturer: Jenbacher

Engine Model: JMS 420GS-N

Fuel: Natural Gas

Rated Output: 1,415 kW

Speed: 1,500 RPM

Frequency: 50 Hz

The JMS 420GS-N is an established Jenbacher natural-gas engine platform designed for reliable stationary power generation. Its approximately 1.4 MW output class makes it an attractive solution for industrial facilities, commercial installations, distributed-generation projects and CHP plants.

ALTERNATOR SPECIFICATION

Manufacturer: Newage / AVK Deutschland GmbH

Model / Frame: PE734F2

Continuous Rating: 1,935 kVA

Continuous Power: 1,548 kW

Voltage: 400 / 231 V

Frequency: 50 Hz

Speed: 1,500 RPM

Phase: 3

Power Factor: 0.80

Excitation Voltage: 64 V

Excitation Current: 3.7 A

Enclosure: IP23

Stator Winding: 12

Stator Connection: Star

AVR: MX321

CHP / COGENERATION POTENTIAL

The Jenbacher JMS 420GS-N is also an excellent candidate for CHP and cogeneration projects, where available engine waste heat can potentially be recovered for hot water, process heating, space heating or other thermal applications.

For facilities with simultaneous electrical and thermal demand, heat recovery can significantly improve the overall energy utilisation of the fuel and may provide attractive project economics.

Actual CHP performance and heat-recovery potential should be confirmed following a detailed technical assessment of the specific unit and installation.

SCOPE OF SUPPLY

The offered package includes:

• Jenbacher JMS 420GS-N gas engine
• Newage / AVK alternator
• Open skid-mounted generator package
• Engine control panel
• Diane XT control panel cabinet
• Associated equipment as available with the package

Final scope of supply and completeness of auxiliary systems should be confirmed before confirming the order.

CONDITION

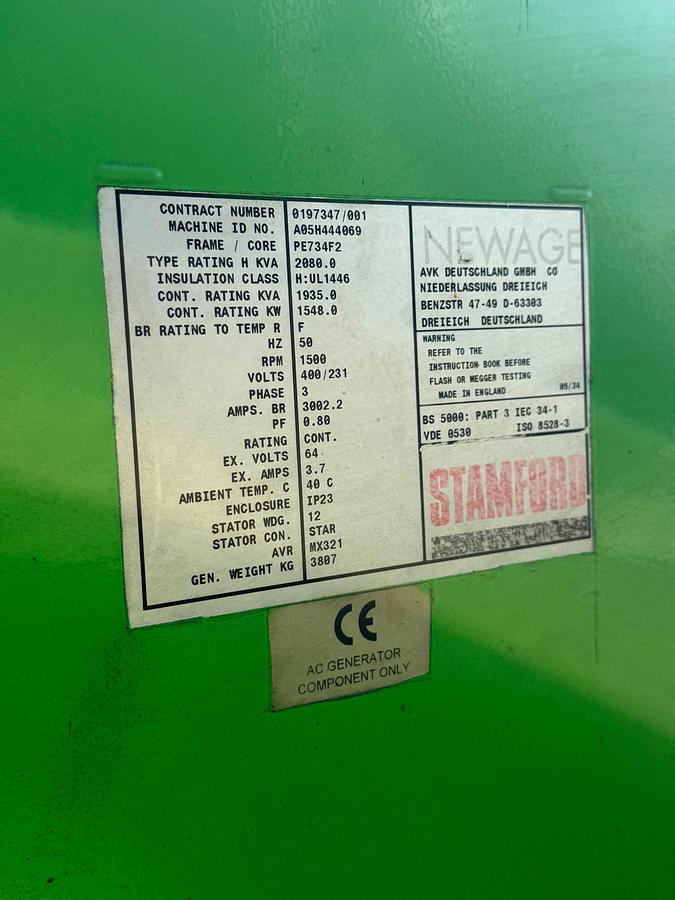

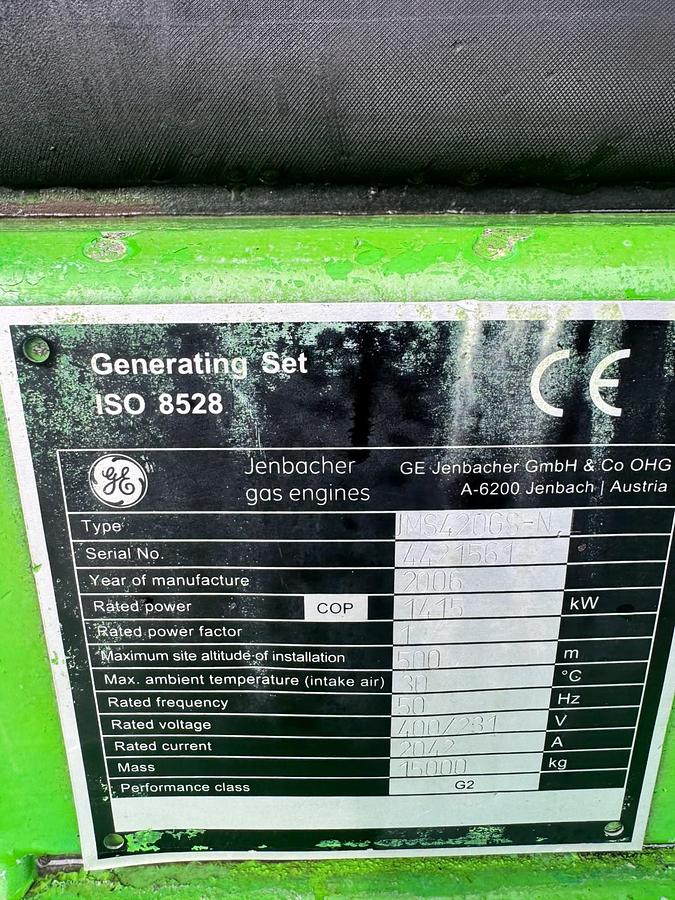

• The generator is offered as used equipment and is described as being in excellent condition with low running hours. The engine and generator nameplate information has been photographed and is available for verification.
• Inspection can be arranged by prior appointment. Additional photographs, videos and technical information are available for serious prospective buyers.
•


WHY CONSIDER THIS JENBACHER JMS 420GS-N?

The Jenbacher JMS 420GS-N 1.415 MW gas generator offers a strong combination of established engine technology, substantial electrical output and a widely applicable 50 Hz configuration.

With a 1,415 kW engine rating, 1,935 kVA alternator, 400 V output and 1,500 RPM operating speed, this package can be considered for industrial power generation, CHP, distributed generation, replacement of existing gas engines or expansion of existing generating capacity.

The combination of a Jenbacher gas engine and Newage / AVK alternator makes this a potentially attractive used power-generation package for buyers seeking a proven medium-scale natural-gas generating solution.

Is this unit suitable for your energy need?

Contact us today to get a pricing, quote or to discuss logistics information.
