2012 MWM TCG 2020 V12 999 kW Biogas CHP Cogeneration Unit

Complete 999 kW Biogas BHKW / CHP Module

Available for sale is a 2012 with Output Power of 999 kW biogas Combined Heat and Power (CHP) cogeneration module,

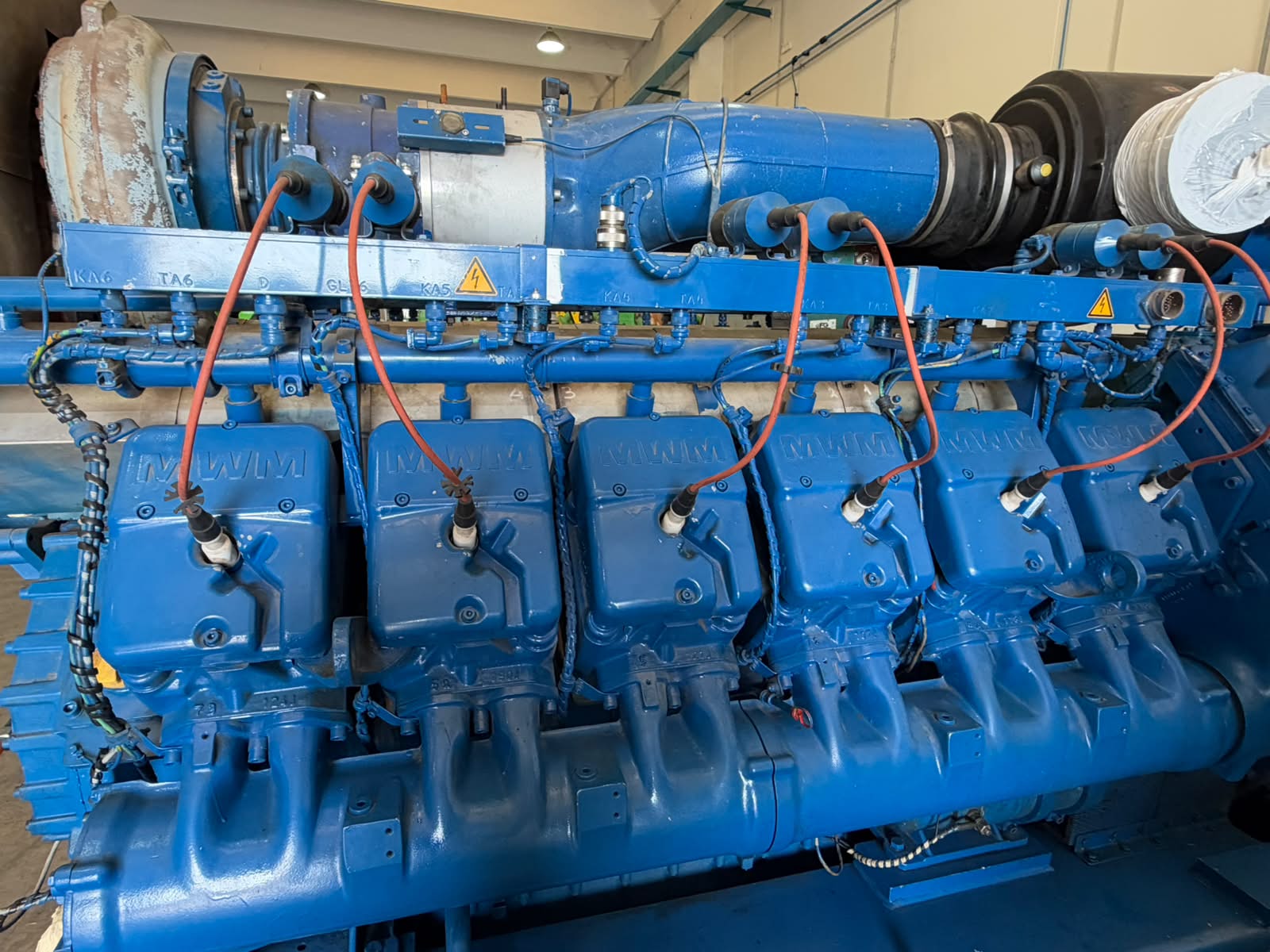

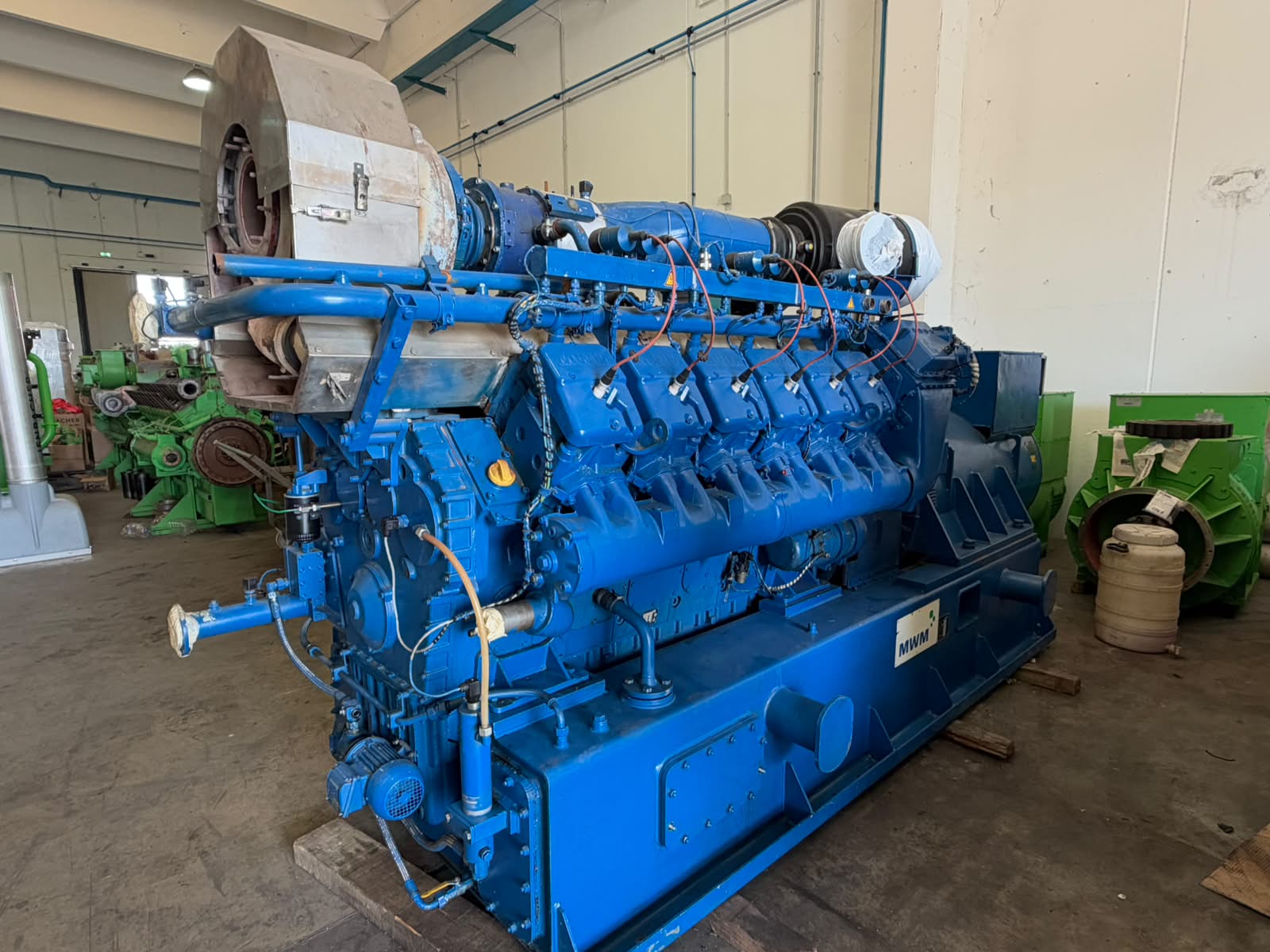

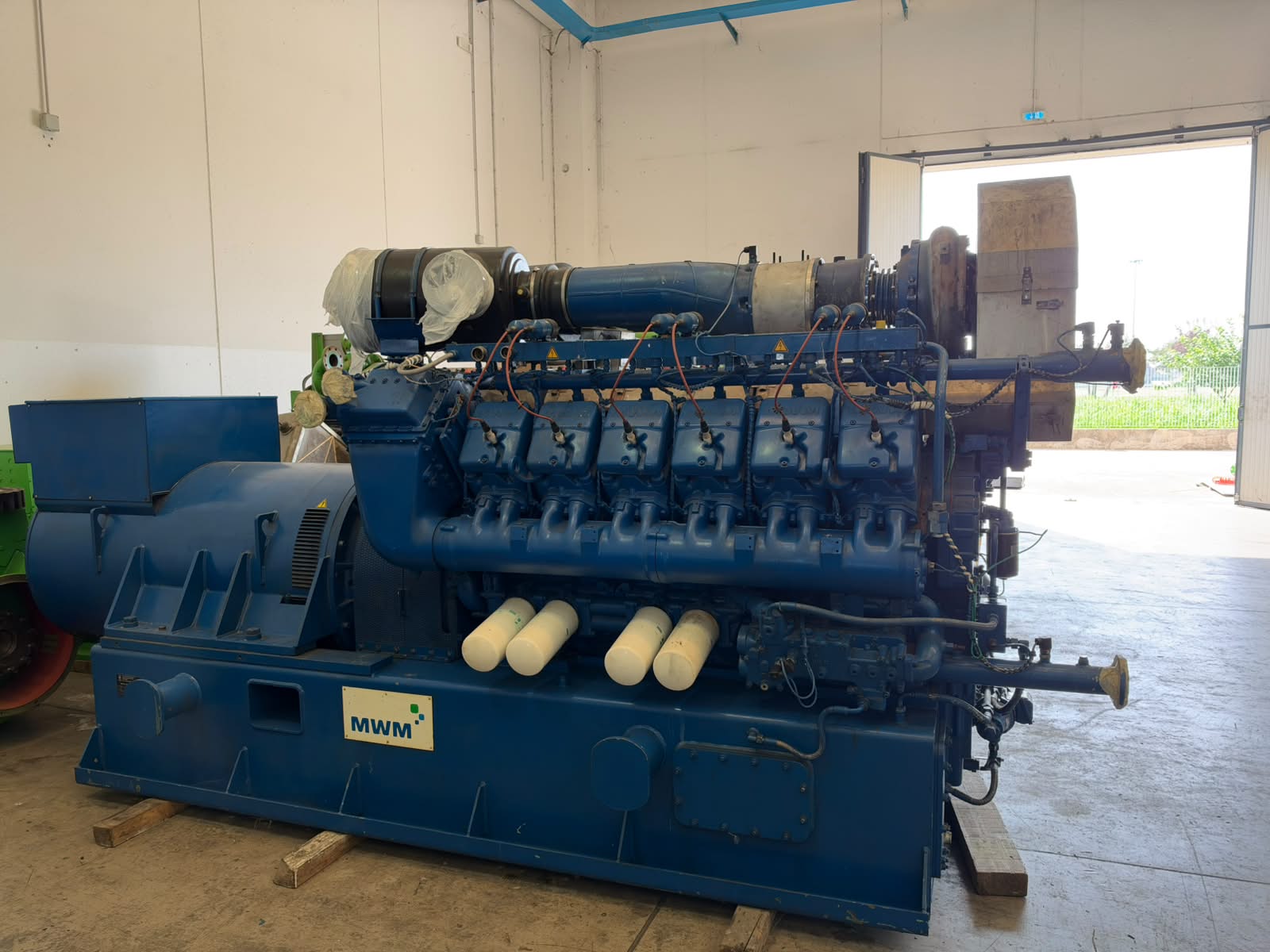

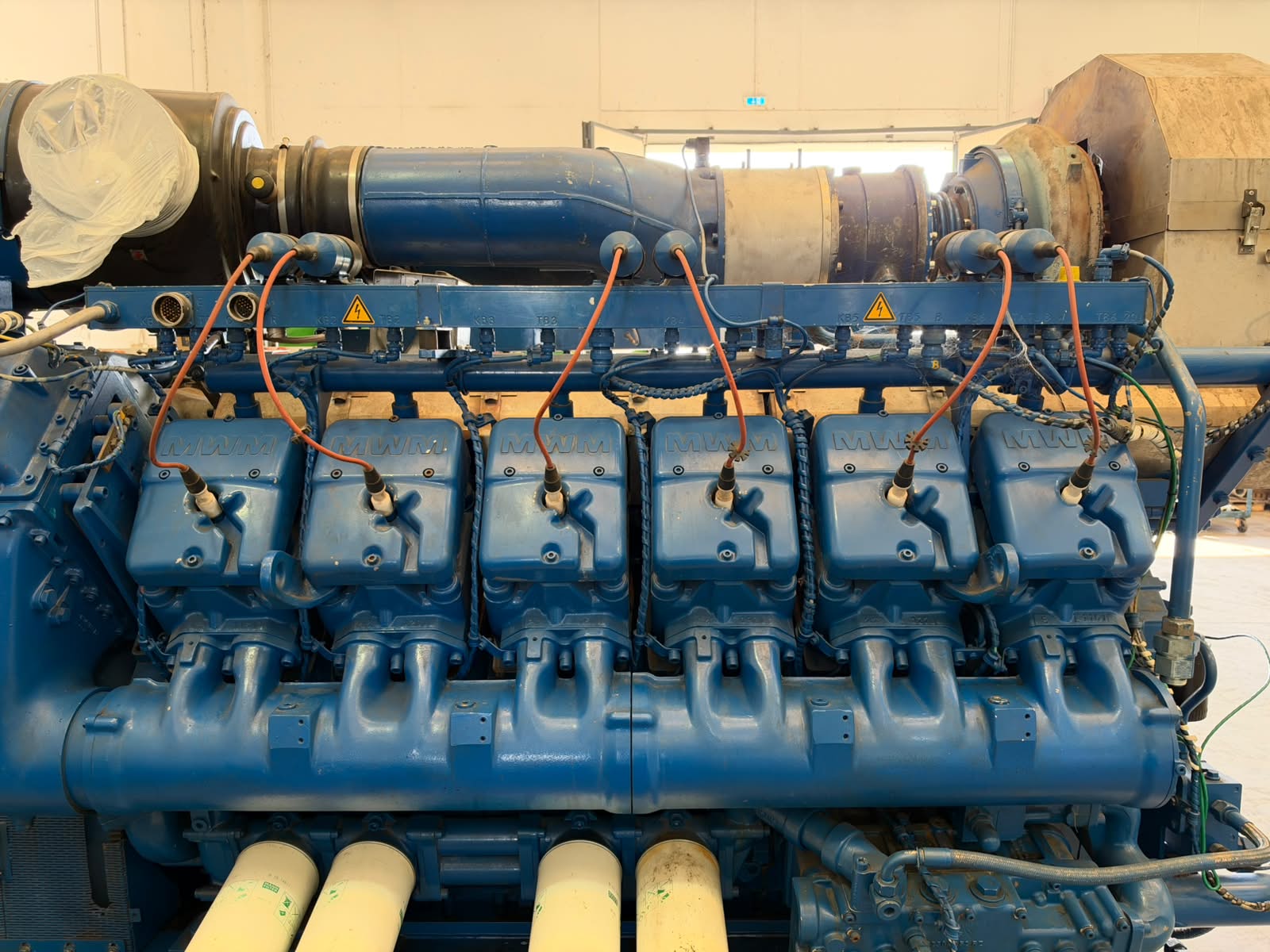

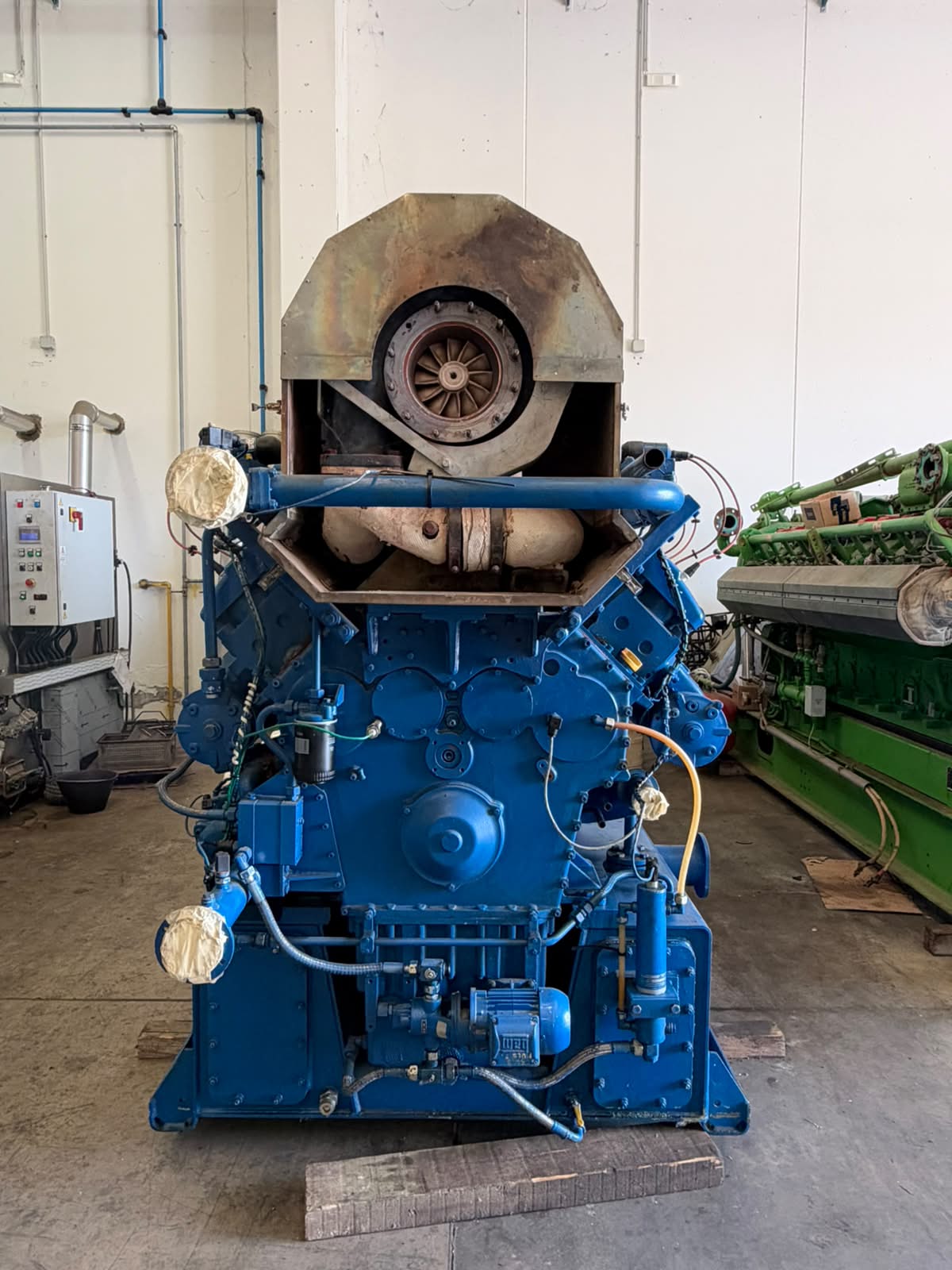

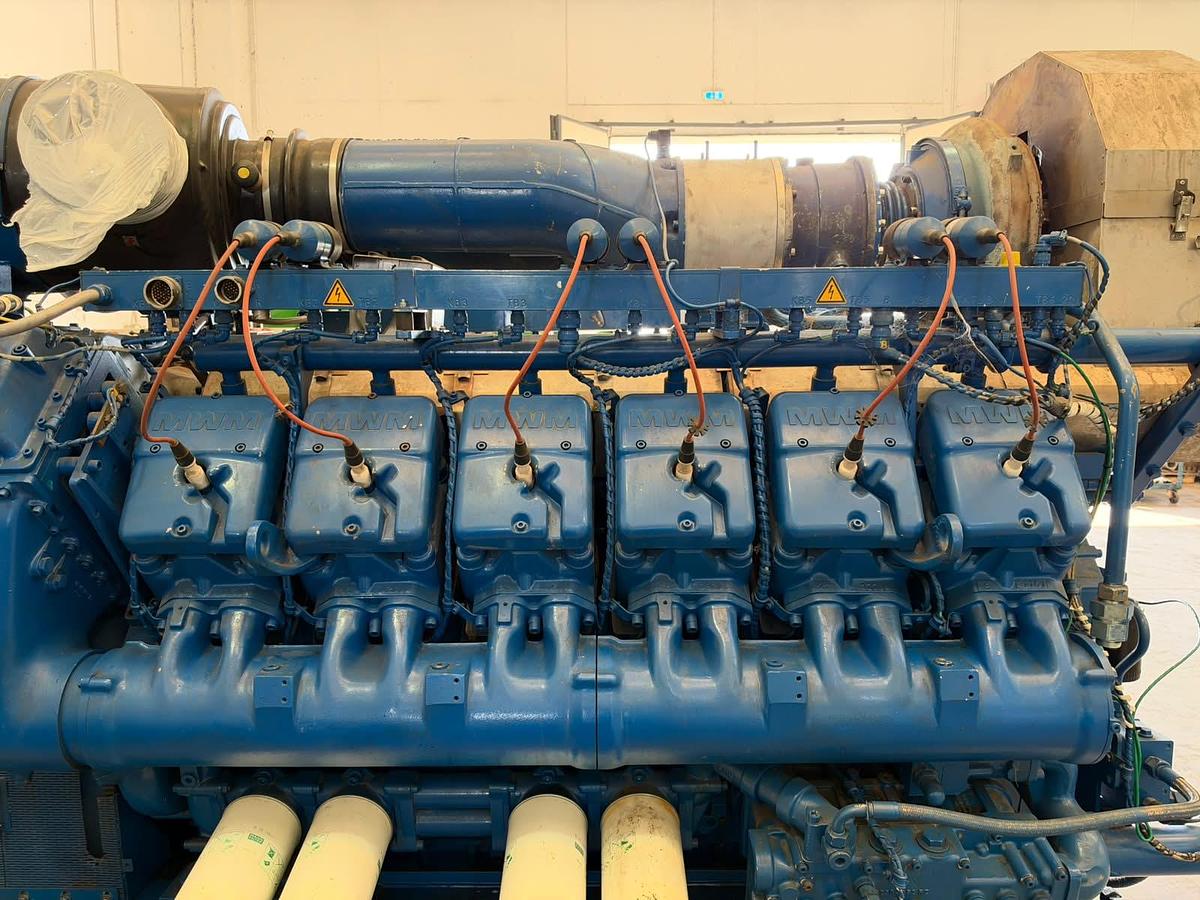

The unit is equipped with a MWM 2020 V12 gas engine coupled to a Marelli Generators alternator.

This is a factory-rated industrial CHP module designed for continuous-duty operation on biogas, providing both electrical power generation and useful thermal energy. The module is rated at 999 kW electrical output and 567 kW thermal output, making it suitable for biogas plants, anaerobic digestion facilities, industrial CHP installations and other applications requiring reliable on-site power and heat generation.

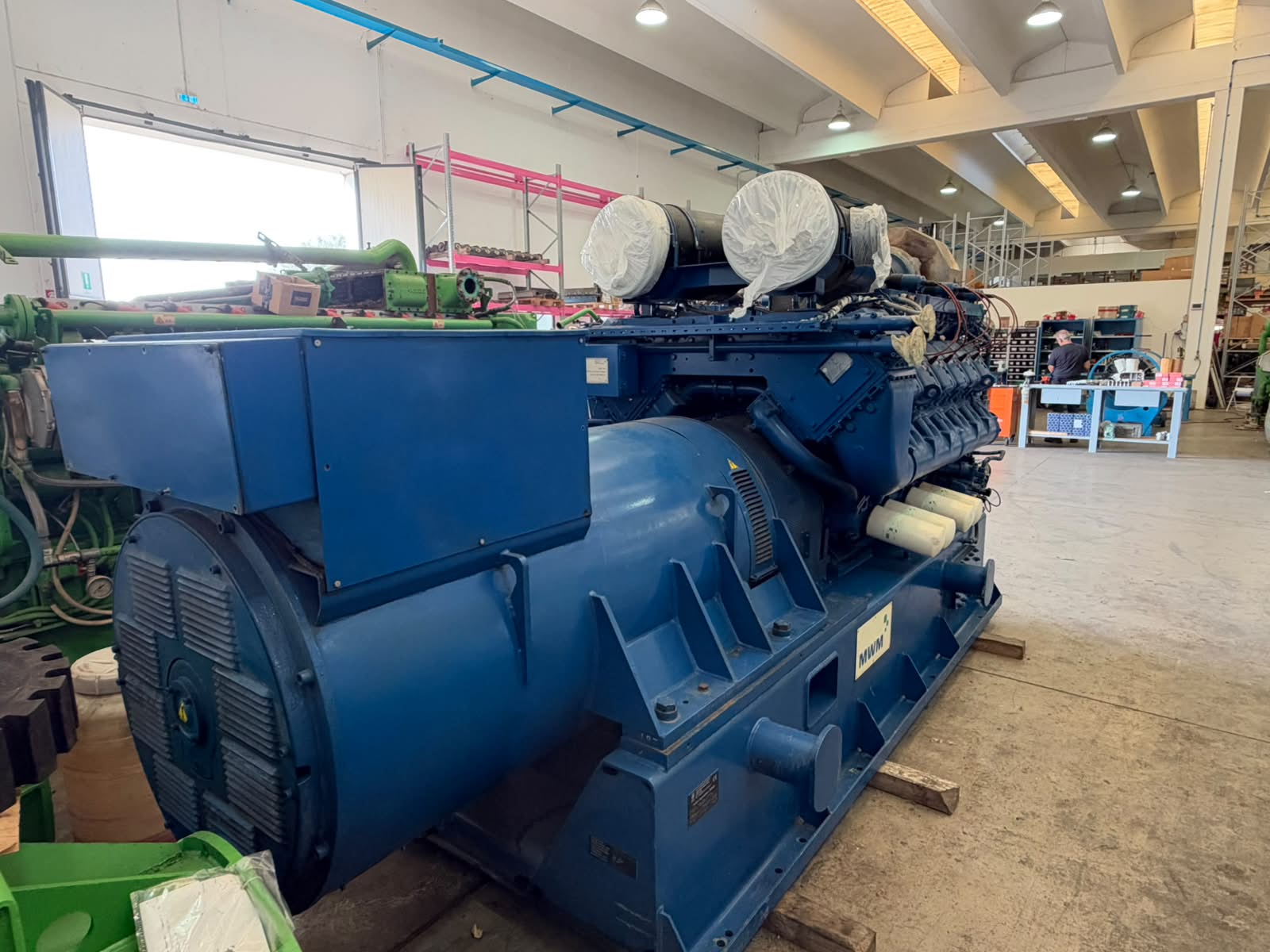

The engine is a MWM 2020 V12, operating at 1,500 RPM, with the unit configured for biological gas / biogas fuel. The generator is a Marelli Generators MJB 450 LB4 series alternator with a rated apparent power of 1,850 kVA.

Buyers are encouraged to inspect the equipment and verify condition, specifications, operating history and completeness prior to purchase.

Technical Specifications

• Manufacturer: MWM
• Model: TCG 2020 V12
• Engine Serial No: 1239475
• Rated Speed: 1,500 RPM
• Alternator Manufacturer: Marelli Generators
• Model: MJB 450 LB4 B24 / MJB 450 LB 4
• Serial No.: MY26456
• Code: MJB4582K00880
• Module Model: SV 999 GSMTLe
• Module No.: 8025
• Year of Manufacture: 2012
• Fuel: Biogas / Biological Gas
• Electrical Output: 999 kW
• Thermal Output: 567 kW
• Duty: Continuous operation
• Rated Apparent Power: 1,850 kVA
• Voltage: 400 / 415 V, Y
• Frequency: 50 Hz
• Power Factor: Cos φ 1.0 / 0.8
• Service: S1 Continuous Duty
• Protection: IP23
• Insulation Class: H / H
• Rated Current: 2,670 A @ 400 V / 2,574 A @ 415 V
• Nominal Current: 1,442 A
• Alternator Production Date: 09/2011

Condition & Availability

The unit originates from a 2012 installation and is being offered for resale as a complete Bosch KWK Systeme / MWM biogas CHP module. The available technical data is based on the manufacturer's nameplates and identification information associated with the equipment.

Condition, operating hours, maintenance history and included auxiliary equipment should be confirmed during inspection. Additional photographs and documentation can be provided where available. Inspection is available by appointment.

For further information, including current location, operating hours, inspection arrangements, documentation, loading/shipping details and commercial terms, please contact us.

This equipment is particularly suited to buyers looking for an established MWM 2020 V12 biogas engine CHP system in the approximately 1 MW electrical class, whether for an existing biogas installation, replacement project, expansion, or industrial power-generation application.
